Custom API Calls let Managed Agents connect to external APIs to retrieve information, send data, and use live results during conversations. Configure the request method, endpoint, authentication, parameters, usage instructions, and response fields, then test the request before making it available to the agent. This guide explains how to configure a Custom API Call and how Managed Agents use API data during a conversation.

TABLE OF CONTENTS


What Are Custom API Calls?

Custom API Calls allow Managed Agents to interact with external services during a conversation. When an API call is relevant, the agent can collect required information, send the configured request, and use selected response data to continue the conversation.

This can be useful for retrieving current information from external systems, sending or updating data, checking availability, or performing other API-supported actions.


Requirements and Supported Options

Before configuring a Custom API Call, have the API documentation and required credentials available. You should know the endpoint, request method, required parameters, headers, request body fields, and the response data the Managed Agent should use.

Supported Request Methods

  • GET
  • POST
  • PUT
  • PATCH
  • DELETE

Supported Authentication Methods

  • API Key
  • Bearer Token
  • Basic Authentication
  • No Authentication

Set Up a Custom API Call

Configure and test the API request before using it in live conversations so the Managed Agent can collect the correct information and use the expected response fields.

Step 1: Open the Managed Agent

  1. From the Sub-Account view, go to AI Agents → Agent Studio.
  2. Open Managed Agents.
  3. Select the Managed Agent you want to configure.

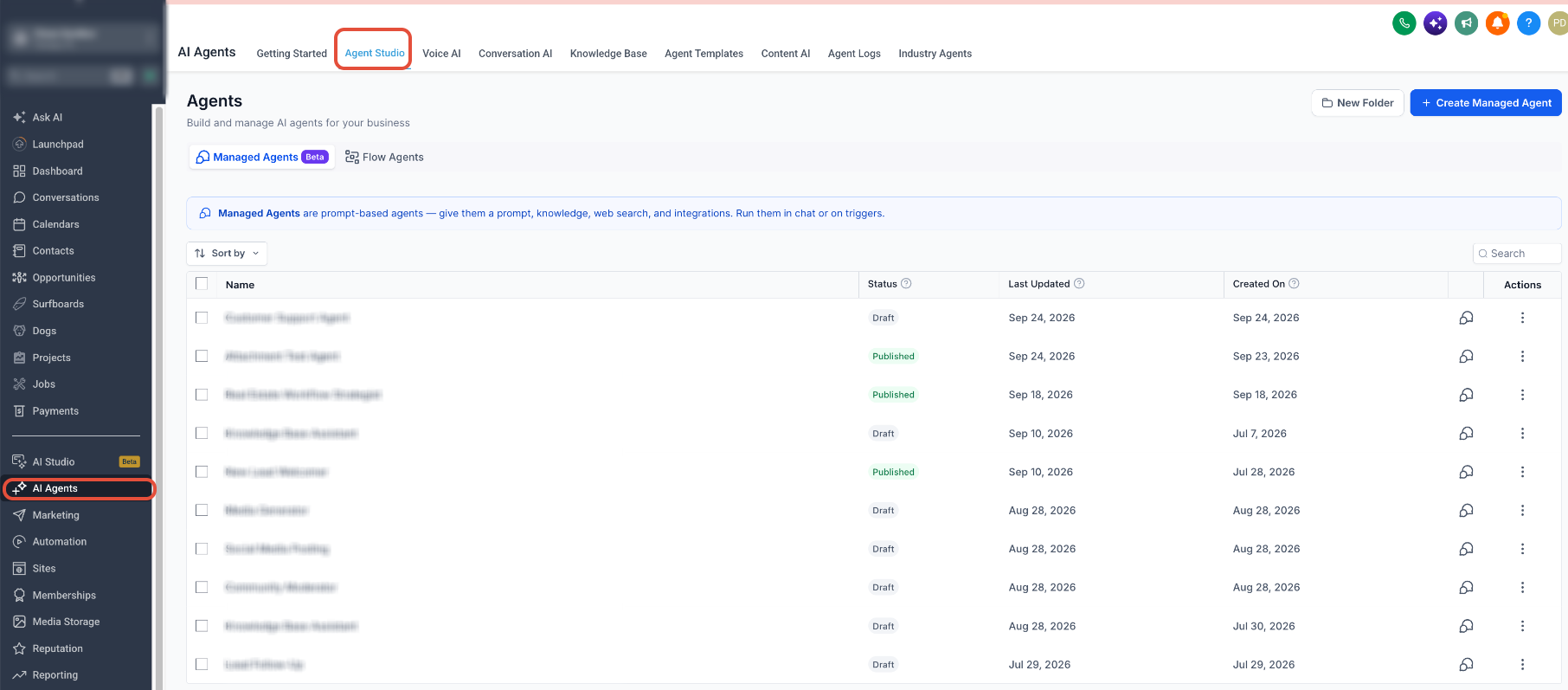

Managed Agents configuration area


Step 2: Configure the API Request

Add or configure the Custom API Call, then enter the required request details:

  • Request method
  • Endpoint URL
  • Path or query parameters
  • Headers
  • Request body, when required
  • Authentication
  • Usage instructions

Custom API Call request configuration


Step 3: Define When the API Should Be Used

Add clear instructions describing when the Managed Agent should use the API call. Specific instructions are especially important when the agent has access to multiple API calls or tools.

Step 4: Test the Request

  1. Enter test values for any required parameters.
  2. Run the test request.
  3. Review the request status and API response.

The testing experience can also provide a cURL preview for reference or troubleshooting.

Custom API Call test response


Step 5: Select Response Fields

Select the response fields the Managed Agent should use from the API response. Include only the data the agent needs to complete the task or continue the conversation.

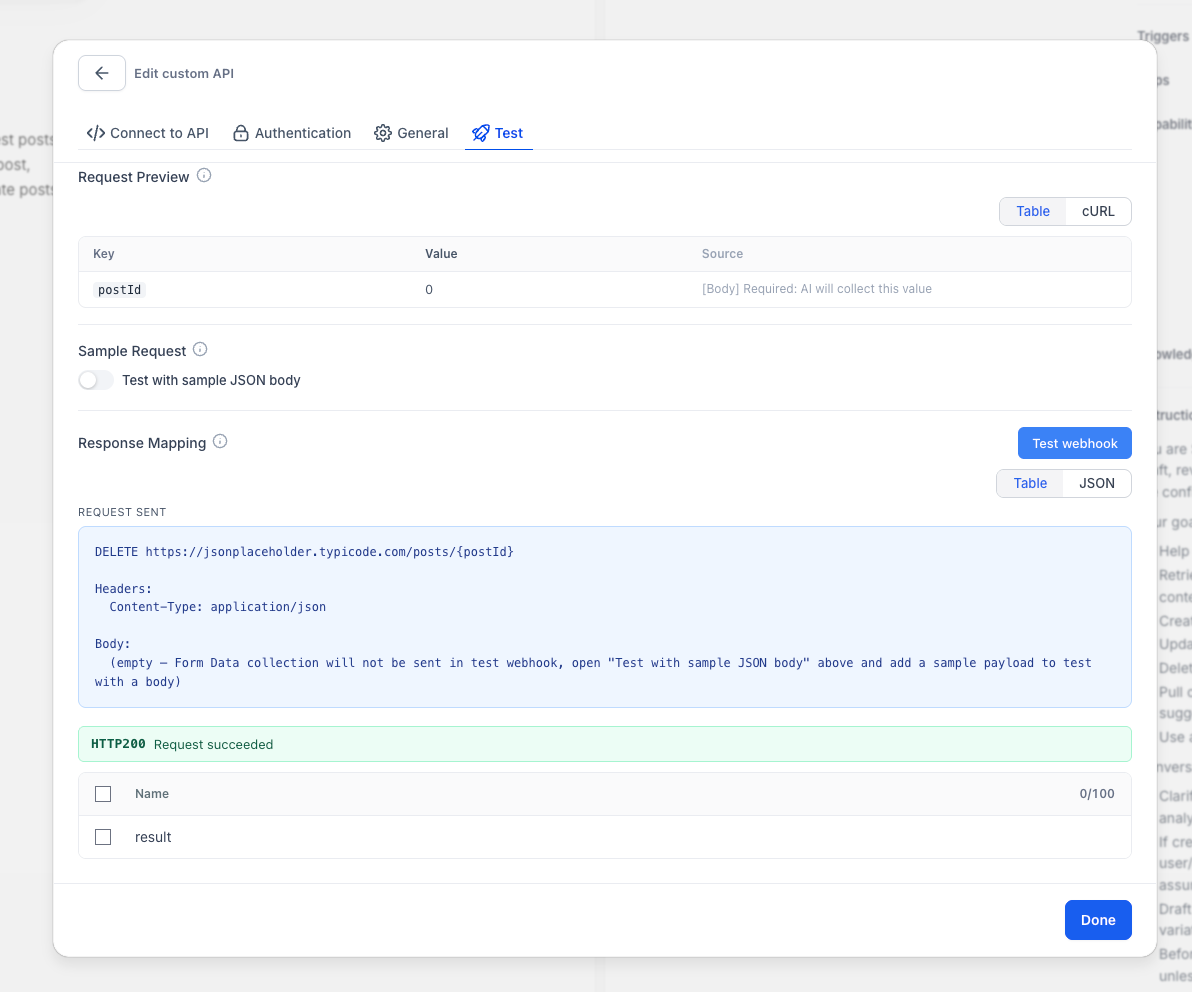

API response field selection


Step 6: Save and Test the Managed Agent

Save the Custom API Call, then test the Managed Agent with realistic requests. Confirm that the correct API is selected, required values are collected, the request succeeds, and the expected response data is used before publishing the agent.

Managed Agent testing interface

How the Managed Agent Uses the API

When a configured API call is relevant, the Managed Agent can:

  1. Check whether the required information is already available.
  2. Ask for any missing required values.
  3. Insert those values into the configured request.
  4. Send the API call using the configured authentication.
  5. Use the selected response fields to continue the conversation.

Frequently Asked Questions

Q: Can a Managed Agent use more than one Custom API Call?

Yes. You can configure multiple API calls. Give each API clear usage instructions so the Managed Agent can determine when it should be used.

Q: What happens when information required by the API is missing?

The Managed Agent can ask for the missing information during the conversation before sending the request.

Q: Can I test different parameter values?

Yes. Enter test values in the testing interface and review the returned response before using the API call in live conversations.

Q: What authentication methods are supported?

Custom API Calls support API Key, Bearer Token, Basic Authentication, and endpoints that require no authentication.

Q: Do I need to write cURL commands?

No. Configure the API through the Managed Agent interface. The testing experience can provide a cURL preview for reference and troubleshooting.

Need Help?

If a Custom API Call is not working as expected, verify that:

  • The request method and endpoint URL are correct.
  • Required path parameters, query parameters, headers, and request body values are configured correctly.
  • The authentication method and credentials are valid.
  • Required test values are populated before running the request.
  • The test request returns the expected status and response.
  • The correct response fields are selected.
  • Usage instructions clearly explain when the Managed Agent should use the API call.
  • The latest configuration was saved before testing the Managed Agent.

If the issue continues, collect the affected Managed Agent, API request method, endpoint, test result, response or error message, and relevant screenshots before contacting support.
